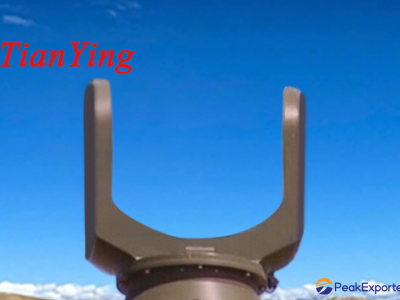

15kg top load 30°/s speed 0.01° precise direct drive pan tilt robotic head Mainly Specification:
| Model | TY-PT05 |
| Performance | |
| Payload(top mount) | 15kg, option 25kg, 50kg,70kg and 100kg. |
| Pan range | 360° continuous |
| Tilt range | -90° ~ +60° |
| Stabilization speed | 0.01°/s ~ 30°/s |
| Angular accuracy | ≤ 0.01°(mechanical backlash) |
| Shot recall repeatability | ±0.01°(±36arcseconds,up to 0.005°),including mechanical backlash+electric etc |
| Note: many pan/tilt write accuracy, repeatability, position repeatability, repeat positioning accuracy, preset positioning accuracy etc that is similar encoder accuracy or similar electric lash, not true accuracy of pan tilt. | |
| Drive | |
| Driven way | Direct drive motor plus high accuracy encoder |
| Load mode | Top mount, option side mount |
| Material | High strength non-casting aluminum alloy material |
| Function | |
| Number of presets | 256 |
| Cruise cruising | Continuous cruise and preset cruise, 8 tracks(each with 16 presets) |
| Power off memory | Support |
| Zero correction | Support |
| Position output | Supports angle query and real-time return |
| Remote restart | Support |
| Proportional Pan/Tilt | Auto adjusts pan/tilt speed based on zoom level |
| Scanning mode | Including regional, horizontal, vertical, panoramic, and apple peel scanning |
| Electrical interface | |
| Data interface | RS422 |
| Video output | Network RJ45, option analog, SDI, |
| Power | 24V DC |
| Power Consumption | ≤ 170W |
| Environmental conditions | |
| Operation Temperature | -40ºC~+60ºC |
| Protection grade | IP66, use in extremely harsh environments |
| Reliability | |
| Life | ≥ 10000 hours |
| Option | |
| 1, Auto tracker | Multimode automatic tracker |
| 2, 400-1100nm HD TV | 2mp 10-300/17-500/12.5-800/25-1200mm, 8mp 10-600/18-1000, to 2500mm |
| 3, IR laser Illuminator | 808nm/940nm 1km-5km |
| 4, 0.4~1.7μm SWIR camera | 17-500/12.5-800/18-1000mm |
| 5, Thermal camera | HD 25-225mm, SD 25-300/30-600/55-1100/110-1100/30-750/40-1000mm |
| 6, Laser rangefinder | 2Hz: 20/30-50km, 25km 1Hz 10mins/30-50km 5Hz/25-50km 12.5Hz 10mins |
| 7,Laser designator rangefinder | 40mJ 20km 20Hz, 60mJ 25km 20Hz, 100mJ 30km 20Hz, 150mJ 40km 20Hz |
| * - Note | * Product design and Technical information is subject to change without notice. ** Depending on the region of sale. |
