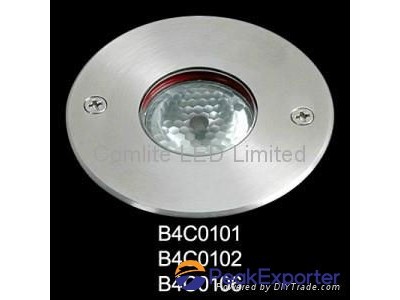

1X3W Small type recessed LED underwater light_Lighting_Consumer Electronics & Lighting_Products

Top Selling

品牌：: Comlite

Model: cl-ul-6

Origin: Made In China

Label: underwater led lamps , led lights , led underwater litht

Feature:

1.High power LED underwater spot light can install in water for decoration or illumination. It is widely used for fountain pool, theme park, etc.

2.Single color (pure white, warm white, red, green, blue, yellow) available. 3.Stainless steel housing . IP68, built-in constant current driver, input voltage 24v DC, low consumption and safe for human and easy to install

specifications:

Housing:	Molding shaped stainless steel housing
Gasket:	EPFM gasket
Glass:	Step tempered glass T=8mm
Loading capacity:	Exert force area of ￠10=1330kgs
Lens:	Asymmetrical optical lens, efficiency ≥85%
Cable gland:	IP-68 PG-9 coppeer and nickel coated
LED:	TO type power LED
PCB:	Excellent heat conductivity aluminum,coefficient of heat conductivity≥2.0w/mk
Driver:	constant current output
	single color LED=1-circui output
	RGB 3in1 LED=3-circuit output
Power cable:	H07RN-F 2X1m㎡ L=0.5m (for single color)
Power cable:	H05RN-F 4X0.75m㎡ L=3m (for RGB)
Mounting sleeve:	PVC with stainless stell ring

remarks:

1,this high-power LED housing is all inless steel. must be installed underwater staying cold to prevent from burning too hot.

2. Use only switching power supply or coiled transformer for 24VDC power input.

3. Customized 316# stainless steel is available.

Dimension:

Technique Parameters:

Part No.

Light Source

Lens Beam Angle(°)

Input Voltage(V)

Operating Current(mA)

Consumption(W)

Luminance
(lm)

B4C0102	1X3W	30°	24VDC	110	2.6	Cool white=67 Warm white=57
B4C0106	1X3W RGB 3in1	30°	24VDC	R=38	R=0.9	R=17
				G=53	G=1.3	G=30
				B=54	B=1.3	B=9
C4C0102	1X3W	______	24VDC	110	2.6	Cool white=68.2 Warm white=62.5
C4C0106	1X3W RGB 3in1	______	24VDC	R=38	R=0.9	R=22
				G=53	G=1.3	G=33
				B=54	B=1.3	B=11

Advantage:

1. Beautiful appearance and mini type design
2. Long lifespan >50,000 hours
3. Low working voltage, safe for humen
4. Green Light, environmental protection
5. Low power consumption, high efficiency, economic
6. Single color,(pure white, warm white, red, green, blue, yellow) are available
7. CE and RoHS approval, IP68
