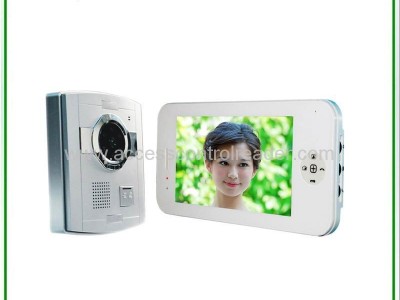

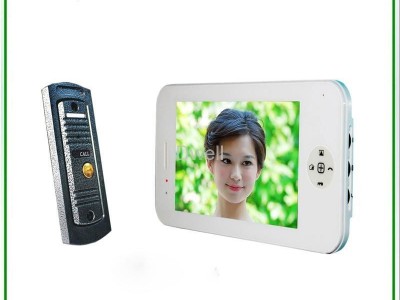

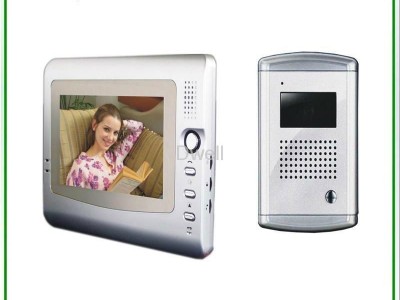

7" color Video door phone support unlocking by ID card,by password,by key

Function and Features：

Plastic camera, unlock by ID card,by password,by key, good design,CMOS or CCD sensor.6 LED lights,nightvision.

Handfree indoor monitor,7 inch TFT,clear image.

Intercommunication，monitoring the outdoor,unlock..

Intercommunication is available between indoor and outdoor unit..

Brightness, chroma and ring adjustable.

3-chord melody rings for option.

Two cameras can connected with four monitors.(different choice)

Four wires,DIY installation

Packing detail: Color box,5 sets in one carton.

Including in one kit:One indoor monitor, one outdoor camera, power adapter, user manual,cables.

Surface mounting for monitor and camera

Monitor dimension: 228（L）×114（W）×20（H）mm

Camera dimension:105（L）×１65（W）×33（H）mm

Wiring requirements:value="30" unitname="m">30M: RVV4 X value=".5" unitname="mm">0.5 mm,value="50" unitname="m">50M: RVV4 X value=".75" unitname="mm">0.75 mm,value="100" unitname="m">100M: RVV4 X value="1" unitname="mm">1.0 mm

Data of Technology：·

Night vision illumination distance; more than 2 meters

Gain control: Automatic

Working temperature: value="10" unitname="C">-10 C- 50 C

Illumination: 0.1 Lux

Camera angle: value="92" unitname="C">92 C degrees wide-angle

Adapter input voltage: AC100-240V  50Hz-60Hz

Adapter output voltage current: AC14.5V  1200mA

Talk time delay: 90S

Monitor time delay: 30S

Dissipation: stand-by <0.5W     working <10W

Relative humidity: 10 % - 90%(RH)
