BE-212 BE-212B BE-212F Heidenhain Display Monitor BE212 BE212B BE212F CRT To LCD

A CRT can be unreliable and can be down for days at a time
when you need it the most. When a CRT burns out, installing
an LCD upgrade is the fastest and most reliable way to get a
machine controller up and running.

BE-212 BE-212B BE-212F Heidenhain Display Monitor BE212 BE212B BE212F CRT To LCD

Brief description:
This 12.1“ TFT installation monitor has been designed as replacement for 12“ tube monitor (monochrome yellow, BE212 and BE212F flat screen) of HEIDENHAIN BE-212 BE-212B BE-212F Heidenhain Display Monitor BE212 BE212B BE212F CRT To LCD. Conversion with plug and play is quick and easy with a few simple steps.


Technical specifications:
Display / resolution 12.1“ TFT full color active / 800x600 pixels
Brightness 370 cd
Frequency 12-45 kHz horizontal, 50-75 Hz vertical

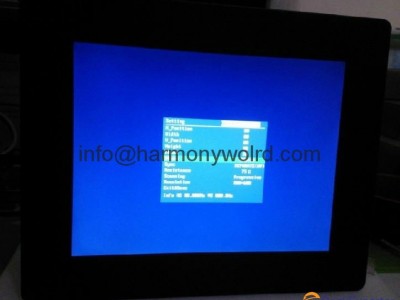

Settings via OSD (On Converter)

Active area LCD screen 246.0 x 184.5 mm (W x H)
Housing compatible: Using original

Power supply AC 85-240V rubber connector with safety fuse
Temperature range -10°C to 55°C
