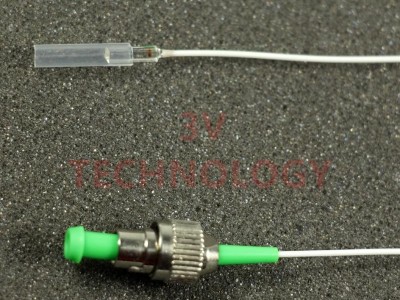

Custom Optical Fiber Collimator

3V TECHNOLOGY is a professional manufacturer with 18years experiences in producing fiber collimator,and could design and develop according to clients' special requirements.Even more,with special SM/MM fiber to produce single-core,duoble-core and multi-core colliamtors;Working wavelength,working distance and working optical power can be specified

Function/Application：

It collimates beam from fiber tip, or couplers a collimated beam to fiber.

Widely used in optical communication,sensing,lasing,medical industries.

Typical Products like:optical inline isolator,CWDM/DWDM Device,optical fiber circulator,optical switches,hybird optics

Customization Optional:

1,)1300nm/1500nm working wavelength or customize(AR coating)

2,)2-5mm working distance or customize

3,)C-lens/G-lens or customize endcaps

4,)500mW optical power or customize

5,)SMF-28e fiber or other SM,MM,PM fiber can choose

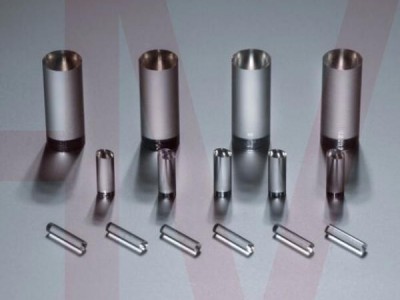

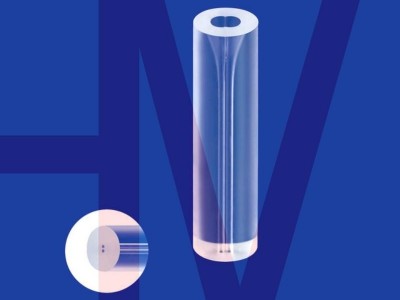

6,)Glass ferrule/ceramic ferrule can choose

7,)Glass sleeve or metal sleeve can choose for tubing

8,)Fiber length will be sepcified by customers

9,)Bare fiber or 900um tube jacket fiber can choose

10,)Connector types customized, like LC,FC(UPC or APC),SMA or D80(SUS ferrule)

Our products(included materials) are campliant with Telcordia and Rohs requirements.
