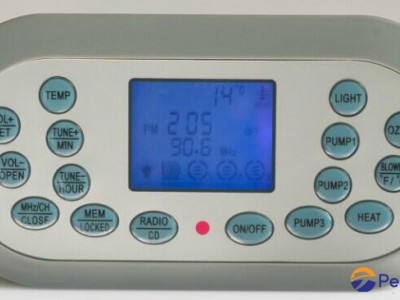

Digital bathtub controller(KL6400)

Function summary

LCD display.Maximum allowable loads: 1 massage pump, 1 circulation pump, 1 blower and 1 ozonator.Allow single color light and the light could synchronously change color and fix color.Max allowable heater power rating is 2*3KW.Water temperature display and setting, and memorize the setting temperature.FM radio frequency display, automatically or manually modulate the channel.Radio volume is adjustable and displayed.Automatically feeding water and mandatory drainage.Radio volume is adjustable and displayed.Automatically feeding water and mandatory drainage.Switchbank can select various functions.Error code hinting.

Electrical parameter

Working Voltage: AC220-240V/50Hz             Maximum Working Current: 32 A/220-240VDielectric Strength: 1250V / 1 minute, no punchthroughInsulation Resistance: 》200MΩWaterproof Level: IPX4Electric Shock Protection Level: Class 1Heater: 3KW/AC220-240VSurfing Pump:10A/AC220-240VBlower: 5A/AC220-240V                    Circulation Pump: 5A/AC220-240VLED Light: AC12V/10W（Single color）or AC/DC12V/10W（Multiple color）Ozone:  AC12V/10WRadio:  1) Frequency range: FM87.0~108.0 MHz           2) Max output power: 10W           3) Single channel loudspeaker: 8Ω anti-moisture speaker
