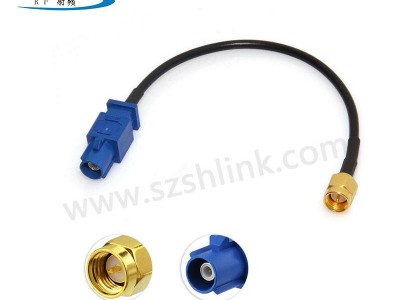

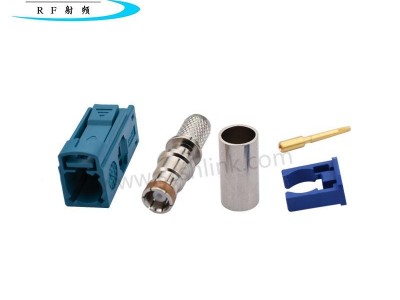

FAKRA Z code Female connector with RG174 RG316 Cable Assembly

Application:

1. Automotive
2. Global Positioning Satellite
3. Satellite Radio
4. Bluetooth
5. Remote Vehicle Diagnostics
6. Infotainment Systems

Electrical specifications:
Frequency range: DC to 6GHz
Connector: blue female to blue female
Application GPS: telematics or navigation
Cable type: RF1.13/RG178/RG316/RG174
Cable length: 100mm (according to customer requirement)
Impedance: 50 Ohms
Temperature range: -40 to +85℃
Rated voltage: 60V AC
Contact resistance: 20m Ohms (maximum), signal and ground
Withstand voltage: 200V AC
Insulation resistance: 500m Ohms (minimum)/100V DCVSWR: <1.5:1


Key Specifications/Special Features:
FAKRA connectors from type code-A, B, C, D, E, F, G, H, I, K, Z, L, M, N
Cable assemblies with the coaxial cable
Supports applications that require a high-performing, reliable, and cost-effective RF connector
FAKRA connectors are standard SMB connectors embedded within a special inter-locking plastic housing that uses multiple color-codes for easy identification and mating, and are designed to perform up to 4GHz at 50Ω
Applicable raw cable: RG58, RG174, RG316,
FAKRA SMB connector includes:
Cable connectors, straight and right angle
FAKRA SF connectors
306° turntable right angle connectors
PCB connectors for "pin-in-paste" soldering process and SMD types
Panel connectors
Single and multi-housing types
Waterproof connectors
FAKRA RF calibration kit
