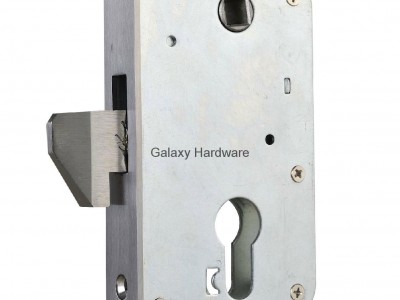

Hook Bolt Lock for Sliding Doors, 5072HK

Sliding Hook Lockcase, Sliding Door Lockcase, Sliding Lockcase, Italian Style, Item: 5072HK

Double Security

Quality Standard: Comply with EN12209:2003,   Test Life Cycles: 100,000 times.

Limited Guarantee Time: 3 years

Material: strike plate, forend, round latch and hook latch made of stainless steel 304, follower made of SS202/SS304. Case made of galvanized steel, or steel with powder coated finish, even stainless iron.

Features:

Backset: 55mm

Distance of center to center (Centers): 72mm

Round Latch: Diameter: 14mm, 39mm long

Hook Latch throw: 39mm

Forend Type:square

Forend Size:210 X 25 X 4.0mm, radius corners are also workable.

Follower: 8mm

Strike Plate: 160 X 25 X 3.5mm

Pocket made of plastic.

Usage: Wood Doors/metal Doors/Aluminium Doors; Minimum door thickness at 33mm.

Production Lead Time: 30 days.

For more details, please contact us now.

Quality is the upmost!
