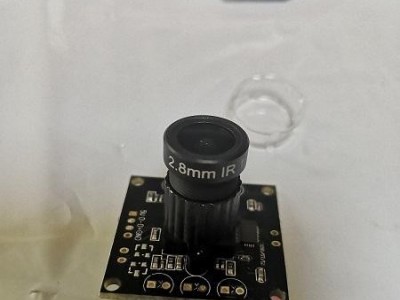

Mini USB Camera

1

Part Number

LCF-23IRT-1080P

2

Sensor

(1/2.7” )

3

Highest significant pixel

1920 (H) *1080 (V)

4

Sensitivity

3300mV/Lux-sec

5

Pixel Size

3µm x3µm

6

Image area

5856µmx3276µm

7

Output

MJPEG/YUV2(YUYV)/H.264

8

Lens

3.6mm/2.8mm optional

9

Distance

5M-10M

10

Central definition

1000LW/PH (Center)

11

 (s/n  RATION)

39dB

12

 (Dynamic Range)

69dB

13

Resolution and frame

1920*1080 ：30f  1280*720：60f    800*600：60f  640*480：120f  320*240：120f

14

Shutter type

Electronic rolling shutter / frame exposure

15

Interface type

USB2.0 High Speed

16

Automatic Exposure Control AEC

Supported

17

Automatic White Balance

Supported

18

Automatic Gain Control AGC

Supported

19

Lens Specification

Size:  1/2.7,  Relative Illumination (Sensor): 70%

IR CUT: 650±10nm

20

Power supply for IR LED Board

  2P-2.0mm

21

Power supply and Interface

USB BUS POWER  4P-2.0mm

22

Power

DC5V

23

Current

150mW （VGA）; 200mW （QSXGA）;

24

Storage temperature

-30°Cto 70°C

25

Working Temperature

0°Cto 60°C

26

USB Cable

1M(2M/3M/5M optional)

27

Operating humidity

15%-85%

28

System Support

Win XP/Vista/Win7/Win8 / Linux with UVC（above linux-2.6.26）

MAC-OS X 10.4.8 or later/Android 4.0 or above with UVC
