New design large capacity corn hammer mill for sale india 3-12t/h

New design large capacity corn hammer mill for sale india 3-12t/h

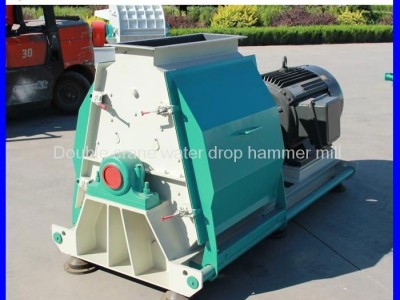

SFSP Serise water drop type hammer mill can crush all kinds of granular feed ingredients, such as corn, sorghum, wheat, beans, the broken soybean cake and other materials.

    This series of crusher adopts welded steel structure, and it’s motor and hammer mill rotor are mounted on a single base, using pin coupling direct drive, rotor passed dynamic balance test, and can work in reverse. The operating door is with safety interlock device to ensure that the operation door can not be opened when rotor is rotating. The mill feed inlet is at the top, which is compatible with various forms of feeding mechanism, hammer is arranged symmetrically. The structure of machine is simple and durable, safe and reliable, easy to install, operate and maintain ,and the vibration is light and productivity is high .

    There are coarse and fine grinder series to choose from, which is suitable for finely pulverizing of fiber, fine materials, high moisture materials and brittle materials, with high yield and low energy consumption.

Technical Parameters of SFSP56*40 poultry feed hammer mill machinery

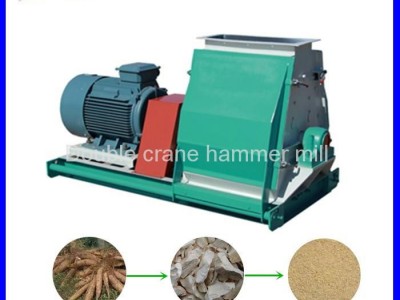

Main features of Double crane corn feed hammer mill

1.Large capacity wide water-drop type crushing chamber design, stable performance, easy for installation, operation and maintenance.

2.Specially abrasion resistant hammer structure can destroy the circulation layer of the materials and realize secondary crushing which can greatly improve the crushing efficiency.

3.Coupling direct drive is adopted, generating high transmission efficiency and accurate drive ratio.

4.Built-in grinding rotors and efficient grinding without dead corner.

5.Portable operation door with convenience, strength-saving and high security.

6.Many kinds of mesh specification can be chosen, Quick starting type dooropening machinery and frame-type screen   pressing mechanism are adopted ,which can make the screen fixed solidly and fast to change the new screen, it is easy to operate and convenient to maintain.

7.Scientific and reasonable hammer arrangement and reasonable gap between hammer blades and the screen, ensure   uniform fineness of finished products, little vibration and high productivity.

8.There are two groups of pin holes on the rotor disc, uniformly distributed on two concentric circles of  different diameters, by which coarse and fine grinding can be achieved.

9.The hammer is sprayed and welded with carbon tungsten alloy can ensure long lifespan.

10.The hammer mill is equipped with automatic controlled feeder to realize automatic feed material adjustment.
