Reinforced Graphite Gasket_Machine Hardware_Industrial Supplies_Products

Top Selling

品牌：: SINSTON

Model: SINSTON ZR-200T

Origin: Made In China

Label: graphitegasket , graphitetape , graphitesheet

Name: REINFORCED GRAPHITE GASKET
Model: SINSTON ZR-200T

Description:It is made from graphite as homogeneous, reinforced by metal mesh, foil or tanged metal. It offers excellent sealing capabilities such as thermal stability, self-lubrication, corrosion resistance, without being brittle and aging etc., under extreme conditions with a longer life and less maintenance.

Graphite Gasket

Gasket Style	ZR-200T	ZR-200TP	ZR-200TT	ZR-200TM
Without eyelet	ZR-200T	ZR-200TP	ZR-200TT	ZR-200TM
With inner eyelet	ZR-200T IR	ZR-200TP IR	ZR-200TT IR	ZR-200TM IR
With outer eyelet	ZR-200T CR	ZR-200TP CR	ZR-200TT CR	ZR-200TM CR
With I & O eyelets	ZR-200T IC	ZR-200TP IC	ZR-200TT IC	ZR-200TM IC
Insert material	None	SS304、316 etc	SS304、316、CS	CS、304/316
		Foil	Tanged	Mesh
		0.05mm	0.1mm,0.25mm-CS	0.1mm

APPLICATION & PROPERTIES:

Various shapes are available, used in petrochemical, mining, vessels, boilers, piping and duct, pumps and valves, flanges etc. Suitable for steam, mineral oils, heat transfer oils, hydraulic oil, fuel, water, seawater, freshwater etc.

Sheet Style	ZR-200T	ZR-200TP	ZR-200TT	ZR-200TM
Compressibility	30%	15~35%	15~35%	15~35%
Recovery	≥10%	≥20%	≥20%	≥20%
Pressure	40bar	200bar	300bar	200bar
Density g/cm3	0.7; 1.0	1.0	1.0	1.0
Temperature0C	-240~550	-240~550	-240~550	-240~550
PH	0~14	0~14	0~14	0~14

Graphite properties:

Item

Tolerance of density

C≥%

Tensile strength

Sulphur content

Chlorine content

Stress relaxation

Ignition

loss

Industrial

±0.06 g/cm3

4 Mpa

<1000ppm

<50ppm

10%

2.0≤%

Nuclear

±0.05 g/cm3

99.5

5 Mpa

<700ppm

<35ppm

10%

0.5≤%

If you are interested in our products , please feel free to contact us : E-mail: Sales@sinston.com

Contacts

Company Name: Cixi Sinston Sealing Material Factory

Name:: Mr. Martin Chan

Telephone: 86-574-63392037

Address

Operational Address: No.9,Gaojia,Jintang,Zonghan Industrial zone,Cixi

You May Like

peakexporter.com温馨提示

本网页所展示的有关【Reinforced Graphite Gasket】的信息/图片/参数等由的会员【Cixi Sinston Sealing Material Factory】提供，由peakexporter.com会员【Cixi Sinston Sealing Material Factory 】自行对信息/图片/参数等的真实性、准确性和合法性负责，本平台（本网站）仅提供展示服务，请谨慎交易，因交易而产生的法律关系及法律纠纷由您自行协商解决，本平台（本网站）对此不承担任何责任。您在本网页可以浏览【Reinforced Graphite Gasket】有关的信息/图片/价格等及提供【Reinforced Graphite Gasket】的商家公司简介、联系方式等信息。

在您的合法权益受到侵害时，请您致电，我们将竭诚为您服务，感谢您对peakexporter.com的关注与支持！

Cixi Sinston Sealing Material Factory

Cixi Sinston Sealing Material Factory

Reinforced Graphite Gasket

Kammprofile Gasket

Reinforced Graphite Gasket

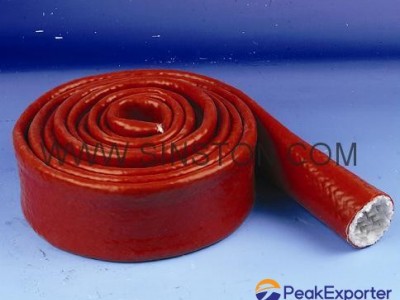

Fiberglass Sleeving with silicone rubber

Expanded PTFE sheet

2.5mm spiral wound gasket

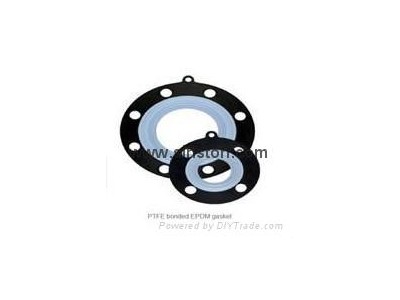

PTFE Bonded EPDM Gasket
