PriceInquire

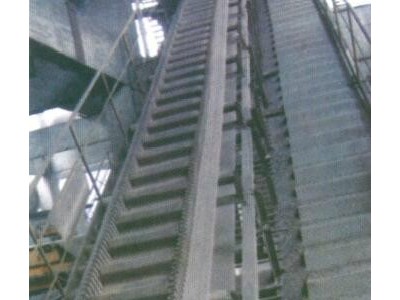

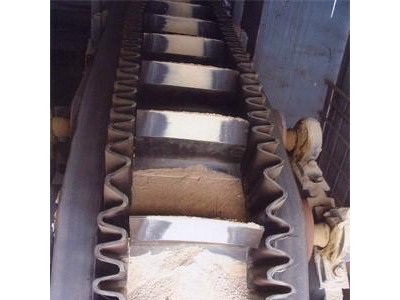

| Application Conventional conveyor belt is widely used in the metallurgy, building materials, electric power, port, Cement, Fertilizer,mineral mountain, agriculature, etc. Which is suitable for transporting normal temperature non-corrosiveness bulk, granular, powder supplies in general conditions. Features 1.Natural rubber Thin belt body with high strength, light weight; 2.Anti-abrasive, impact resistant, corrosion resistant; 3.Softy belt body, good flexibility, excellent trough; 4.Vulcanization molding; 5.Long service life. |
| 1.Physical and mechanical property of cover layer: |
Property level of cover layer | Tensile strength≥ | Tensile yield≥ | Abrasion value≤ |
| Mpa | % | mm3 |
H | 24.0 | 450 | 120 |
D | 18.0 | 400 | 100 |
L | 15.0 | 350 | 200 |
| 2.Tensile property of through thickness: a. The longitudinal tensile strength is not lower than the following nominal value: 160 200 250 315 400 b. The through thickness elongation rate of the belt should not less than elongation rate of trough thickness of the belt should no more than 4%, c. Straightness: no more than 25mm. d. plunger bond stength: |
Index description | Strength between layers≥ | Cover layer and fabric layer | |
|
| Thickness of cover layer≤1.5mm | Thickness of cover layer >1.5mm |
Sample average value | 3.2N/mm | 2.1N/mm | 2.7N/mm |
