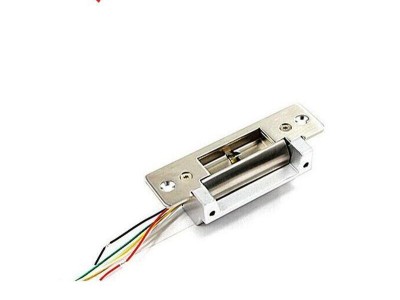

DW-138NO/NC-S is designed for wooden door, metal door, PVC door and so on.There are a group of lock
signal output dry contacts in the lock, they are NO/NC/COM, it is used for remote monitoring the state of the
lock is locked or not.
Product Parameter | Parameter Description |
Lock Size | 124Lx43Wx35H(mm) |
Strike Structure | Stainless Steel |
Holding Force | 1000kg |
Voltage | DC12V (Need Order DC24V) |
Current | 220mA |
Feature | Fail Secure(DW-138NO-S); Fail Safe(DW-138NC-S) |
Suitable For | Wooden Door,metal Door,PVC Door |
Signal Output | Door status Output,NO/NC/COM |
Surface Temperature | Within +20℃ |
Suitable Temperature | -10~+55℃(14-131F) |
Operating Humidity | 0～90%(non-condensing) |
Face plate Housing | Painted Steel |
Function | Built-out MOV |
Weight | 0.42kg |
Packing Quantity | 60pcs/carton |
Packing Size(L*W*H) | 54.5*20*30.5CM |
Gross Weight | 22.8KG |
