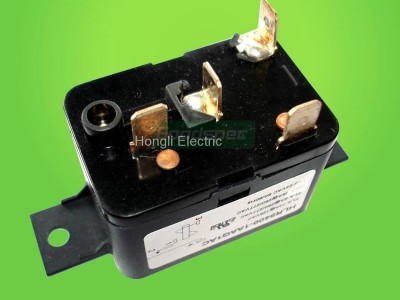

HLR9400-1XAT1AB(SPNO+NC/14A/120VAC) Fan relay_Refrigerator_Consumer Electronics & Lighting_Products

Top Selling

品牌：: HONGLI

Model: SPNO+NC/14A/120

Origin: Made In China

Label: Fan Relay , Relay , General relay

1. Applicable Scope

HLR9400-1XAT1AB(SPNO+NC/14A/120VAC)Fan Relays,Mainly Is Suitable For 50Hz Or 60Hz, The Nominal Current Up To The 14A at 120v and 8A at 277V.It is used on heating and air conditioning equipment to provide switching of heavier loads with a compact size relay.

2.Type and Meaning

HLR	9400	-	1X	A	T	1	AB
relay	serial	bulk pack	1A+1B	AC	120VAC	power rated	panel mounting, dimensions (54.8mm)

3.Fan Relays - HLR9400 Series

Model	Description	Rating of current Amps	FLA/LRA @125V	FLA/LRA @250V	Coil control voltage (VAC)
HLR9400-1AAQ1AB HLR9400-1AAT1AB HLR9400-1AAU1AB HLR9400-1AAV1AB HLR9400-1CAQ1AB HLR9400-1CAT1AB HLR9400-1CAU1AB HLR9400-1CAV1AB HLR9400-1XAQ1AB HLR9400-1XAT1AB HLR9400-1XAU1AB HLR9400-1XAV1AB	SPST-NO SPST-NO SPST-NO SPST-NO SPDT SPDT SPDT SPDT SPDT NO+NC SPDT NO+NC SPDT NO+NC SPDT NO+NC	25 25 25 25 25 25 25 25 25 25 25 25	14/60 14/60 14/60 14/60 14/60 14/60 14/60 14/60 14/60 14/60 14/60 14/60	8/48 8/48 8/48 8/48 8/48 8/48 8/48 8/48 8/48 8/48 8/48 8/48	24 120 240 277 24 120 240 277 24 120 240 277
HLR9400-1AAQ1AC HLR9400-1AAT1AC HLR9400-1AAU1AC HLR9400-1AAV1AC HLR9400-1CAQ1AC HLR9400-1CAT1AC HLR9400-1CAU1AC HLR9400-1CAV1AC HLR9400-1XAQ1AC HLR9400-1XAT1AC HLR9400-1XAU1AC HLR9400-1XAV1AC	SPST-NO SPST-NO SPST-NO SPST-NO SPDT SPDT SPDT SPDT SPDT NO+NC SPDT NO+NC SPDT NO+NC SPDT NO+NC	25 25 25 25 25 25 25 25 25 25 25 25	14/60 14/60 14/60 14/60 14/60 14/60 14/60 14/60 14/60 14/60 14/60 14/60	8/48 8/48 8/48 8/48 8/48 8/48 8/48 8/48 8/48 8/48 8/48 8/48	24 120 240 277 24 120 240 277 24 120 240 277

Conforms To The Standard

	1 、Conforms To UL508, IEC60947, GB14048 Standard
	2 、Approved By UL,CUL,TUV,CE,CCC,Safe Certification and ISO9001 System Certification(SGS)
	UL Files Number: E251539

4.Ordering Request

To ensure your requirements, please specify your order：

If You Request As Follows: Nominal Current: 14A, Working Voltage: 120V, Pole Number: SPNO+NC, Coil Control Voltage:120VAC, Wiring way:Group of 1/4 fast attachments. Load Current: Single-Phase Motor Controls Or linear Load, Installs the way:The foundation kneading board installment,the mounting dimensions(25/32")Packing: 120/Each Box (Factory Packing), Then You May Be Elect The Type : HLR9400-1XAT1AB

Ie	form	Coil Voltage					Motor Power
Ie	form	12VAC	24VAC	120VAC	208/240VAC	277VAC	240VAC
14A	1A +1B	HLR9400-1XAB1AB	HLR9400-1XAQ1AB	HLR9400-1XAT1AB	HLR9400-1XAU1AB	HLR9400-1XAV1AB	0.6Kw

Ie	from	Coil Voltage		Motor Power
Ie	from	12VDC	24VDC	240VAC
14A	1A +1B	HLR9400-1XDB1AB	HLR9400-1XDQ1AB	0.6Kw

	HonGLI ELECTRIC 9400 Series PRODUCT CATALOG
	DownLoad PDF DataSheet

Contacts

Company Name: Hongli Electric Co.,Ltd

Name:: Mr. Liqian Wang

Telephone: 86-577-6252655562569016

Address

Operational Address: GOODSPEC Building,Shuangyu Road,Leshang Pioneer Prak,Yueqing Bay Area, Yueqing City ,Wenzhou City, Zhejiang Province,China

You May Like

peakexporter.com温馨提示

本网页所展示的有关【HLR9400-1XAT1AB(SPNO+NC/14A/120VAC) Fan relay】的信息/图片/参数等由的会员【Hongli Electric Co.,Ltd】提供，由peakexporter.com会员【Hongli Electric Co.,Ltd 】自行对信息/图片/参数等的真实性、准确性和合法性负责，本平台（本网站）仅提供展示服务，请谨慎交易，因交易而产生的法律关系及法律纠纷由您自行协商解决，本平台（本网站）对此不承担任何责任。您在本网页可以浏览【HLR9400-1XAT1AB(SPNO+NC/14A/120VAC) Fan relay】有关的信息/图片/价格等及提供【HLR9400-1XAT1AB(SPNO+NC/14A/120VAC) Fan relay】的商家公司简介、联系方式等信息。

在您的合法权益受到侵害时，请您致电，我们将竭诚为您服务，感谢您对peakexporter.com的关注与支持！

Hongli Electric Co.,Ltd

Hongli Electric Co.,Ltd

HLR9400-1XAT1AB(SPNO+NC/14A/120VAC) Fan relay

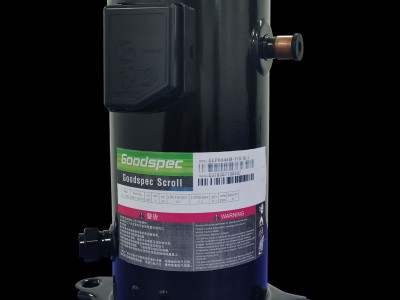

GCPR94KM-TFD-GN1 Compressor for chiller

HLR3800-4AM3C Potential Relay

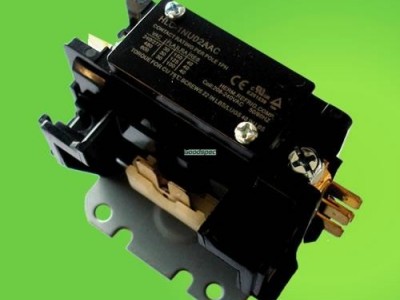

UL TUV Definite Purpose Contactor

HLR3800-2E3D Potential Relay

HLR8400-1ADQ1AB(SPNO/14A/24VDC)Fan Relay

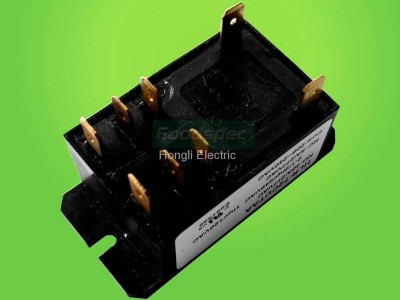

HLR-72CTTAA(DPDT/30A/120VAC) Power Relay

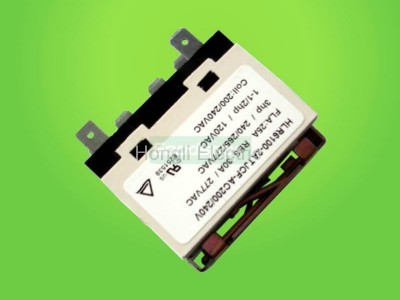

HLR6100-1ATJCF-AC12 Power Relay

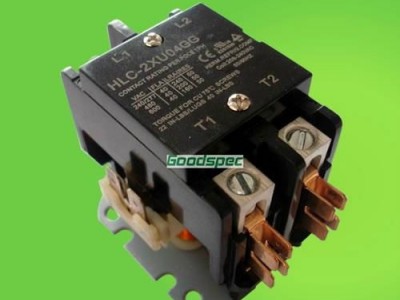

HLC-2XU04GG(2P/40A/208-240VAC) Definite
