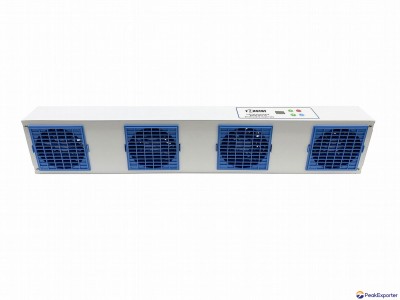

Mini AC High Performance 4fans Static Eliminating Overhead Ionized Air Blower

 E-4000N overhead ionizing air blower is a member of ECW ionizing device, designed to provide targeted coverage for electrostatic problems. It has characteristics of easily fixing up, stability working and high-speed neutralizing static charger.

Line Voltage                 220VAC/ 50 Hz or 110VAC / 60Hz

Current Consumption          Max.1.25 Amp (fan high)

                                                 Min.0.62 Amp (fan low)

Air Volume Output            Fan speed Flow

Low 120 CFM

High 330 CFM

Air Flow Characteristics     40cm×120cm Area Coverage

Operating Temperature        32ºF(0℃)～122ºF(50℃)

Enclosure                     Aluminum

Finish                        Powder Coat

Size                         620mm(L)×220mm(W)×100mm(H)

Optional Air Filter          30PPl Open Polyurethane Foam

Ion Balance(offset voltage)  0V+/-10V(It requires no calibration)

ION OUTPUT (DISCHARGE TIME):

1. Distance measured in mm, decay time measured in seconds.

2. Test data available using ME 268A charge plate analyzer.

3. Test figures are subject to the variation in the atmospheric

conditions.

4. Discharge times are in seconds from 1000 volts to 100 volts.
