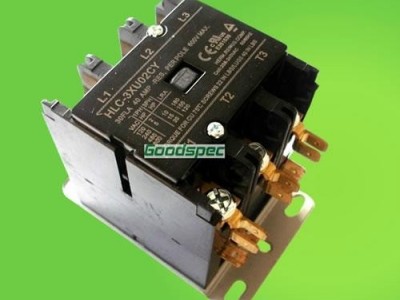

HLC-3XW00CY(3P/20A/400VAC) Definite Purpose Contactor_Refrigerator_Consumer Electronics & Lighting_Products

Top Selling

品牌：: HONGLI

Model: 3P/20A/400V

Origin: Made In China

Label: contactors , ac contactors , dp contactors

Application & Ordering information

1 Application

HLC-3XW00CY definite purpose contactors (3-pole ,20A ) are ideal forHVAC air conditioning, refrigeration, heating, data processing, welding, elevators, hoists & cranes, lighting, pools & spas and food service equipment.

2 Ordering information

HL	C	-	3X	W	00	CY
Hongli Electric	Contactor	Factory Bulk Pack	3P	380-400VAC	20 FLA	#14-4 Lug with quad QC

Product Feature

Detailed Product Description	Unique amortization system to eliminate contact bounce
	Low cost
	Accessories modification quickly and easily without using tools
	Various kinds of terminals for customers' special requirements
	Easy to change the coil
	General amounting size, easy for replacement
	Can be combined with a thermal overload relay to form an electromagnet starter to protect the line in which overload operation may occur
	Double E magnet assembly providing optimal performance with reduced power consumption
	Effective dustproof cover available
	Silver Cadmium Oxide contacts provide long electrical endurance.
	Class F high temperature insulated coils are standard.

Technology Data

NUMBER OF POLES	COIL VOLTAGE 50/60HZ	FULL LOAD AMPS	LINE VOLTAGE	LOCKED ROTOR AMPS	RESISTIVE SMPS RATING	MAXIMUM HORSEPOWER			BOX QUANTITY	APPROX UNIT WEIGHT
NUMBER OF POLES	COIL VOLTAGE 50/60HZ	FULL LOAD AMPS	LINE VOLTAGE	LOCKED ROTOR AMPS	RESISTIVE SMPS RATING	VOLTAGE	SINGLE PHASE	THREE PHASE	BOX QUANTITY	APPROX UNIT WEIGHT
20FLA-3POLE
3	24 110/120 280/240 277	20	240/277 480 600	120 100 80	30 30 30	110/120 200/240 480/600	1.5 3 -	- 7.5 7.5	25	.45 kg
25FLA-3POLE
3	24 110/120 280/240 277	25	240/277 480 600	150 125 100	35 35 35	110/120 200/208 240/277 480 600	2 - 5 - -	- 7.5 10 25 20	25	.45 kg
30FLA-3POLE
3	24 24 110/120 110/120 208/240 208/240 277	30	240/277 480 600	180 150 120	40 40 40	110/120 200/208 240/277 480 600	2 - 5 - -	- 10 10 15 20	25	.45 kg
40FLA-3POLE
3	24 24 110/120 110/120 208/240 208/240 277	40	240/277 480 600	240 200 160	50 50 50	110/120 200/208 240/277 480 600	3 - 7.5 - -	- 10 10 20 25	25	.45 kg

OTHER SPECIFCATIONS	20-30 FLA	40 FLA
Line and Load Terminals	#10-32 screw*	Box Lug
Wire Size Awg Min-Max	16-8**	14-4 Cu/AL
Tightening Torque(Recommended)	22 in ibs	40 in ibs
Quick Connects:power Terminals Coil Termainals	Dual 250 QC Dual 250 qc(2)***	Dual 250 QC Dual 250 qc(2)***
Covers	Optional	Standard
Insulation System	130 Class B	130 Class B
Stranding must be split for #8 wirt. (1)#6-32 screw and (1).250QC are optional.**Permissible Ambient Temperature: -40/65 -40F/150F

COIL TECHNICAL DATA 50/60hz	HLC Series
Nominal Coil Voltage	24	120	208/240	277	480
Maximum Pickup Volts	18	88	177	220	384
Drop-Out Volts Range	6-15	20-70	40-140	65-185	150-270
Nominal Inrush VA@50Hz	65	65	65	65	65
Nominal Inrush VA@60Hz	60	60	60	60	60
Nominal Sealed VA@50Hz	7.5	7.5	7.5	7.5	7.5
Nominal Sealed VA@60Hz	6	6	6	6	6
Nominal DC Resistance-Ohms	6.6	165	660	880	1320

Specification

	HLC-1P,1N,1X,2X,3X,4X series Difinite Purpose Contactor
	DownLoad PDF DataSheet
