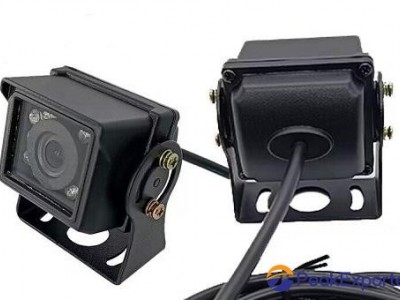

Model No.:LCF-23IREN
Application
General purpose embedded imaging and control.
Security system
Access Control system
Robot vision, object detection and recognition.
Industrial control system.
Automotive system.
Medical systems etc.
Features
1. Working by day and light.(IR LED)
2. Low cost and low powered camera for embedded imaging applications.
3. On-board EEPROM provides a command-based interface to external host via RS232,RS485 and TTL serial link.
4. UART: up to 115200bps(128K,256K optional) for transferring JPEG still pictures
5. Support fast continuous snapshotting
6. Support from 160X120,QVGA,VGA to 1600X1200 different resolutions
7. Auto-Infrared, Auto-White Balance, Auto-Gain Control.
8.Support IR FILTER SWITCH(AUTO)
No. | Item | Description |
1 | Image sensor | CMOS |
2 | Pixels | 2.0 mega pixels |
3 | Image Resolution | from 160X120 to 1600X1200 |
4 | Image Compression | JPEG |
5 | Focal Length | 3.6mm 6.0mm |
6 | Angle of View | 90° 60° |
7 | Minimum lumen | 1 Lux |
8 | Night Vision lumen | 5 Lux |
9 | Night Vision Image | Black-White Image |
10 | Night Vision Distance | 7-10M |
11 | Serial Interface | RS232 TTL RS485 |
13 | Baud Rate | 9600-115200bps ,128K,256K |
14(1) | Connector | Customize for customer(any connector is available) |
(2) | PIN Description | PIN 1: DC 12V/24V PIN 2: TXD PIN 3: RXD PIN 4: GND
|
15 | Length of Cable | Customize for customer(2m is default one) |
16 | White Balance | Automatic |
17 | Exposure | Automatic |
18 | Auto Gain Control | Automatic |
19 | Weight | 0.4KG |
20 | Working Current | IR Off: 80-120mA IR On: 300-350mA |
21 | Power Supply | 12V/24V |
22 | Working Temperature | -15°C~70°C |
23 | Datasheet/Protocol | LCF Protocol |
24 | PC Test Software | Support |
25 | Material of case | metal case |
